RGB Lamp WiFi Controlled V1.1 | GyverLamp | Огненная лампа
Files
Printables Thingiverse ☕︎ Treat the author to a cup of tea 🡥
Description
My case design for Alex Gyver's "Gyverlamp" project. Project links: VK group, GitHub, Author's website.
In this version, the lampshade is 3D printed. Version with a cast plastic lampshade
Components
| Image | Component | Link | Qty | Note |
|---|---|---|---|---|
 |

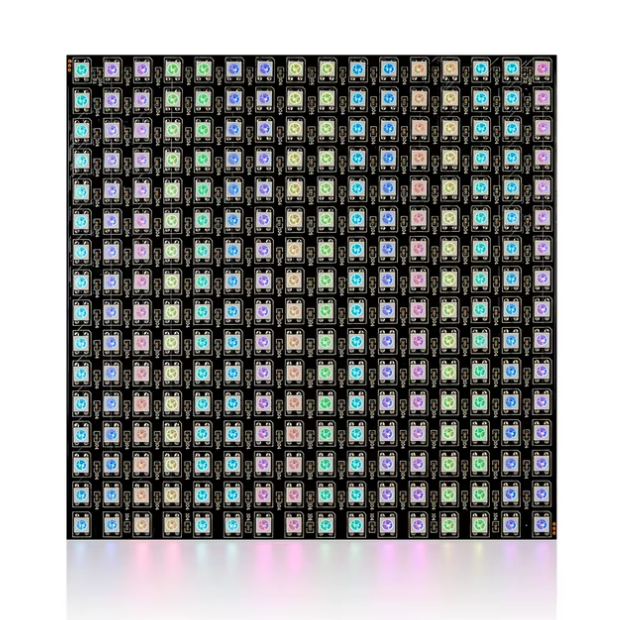

WS2812B 16x16 LED Matrix | Aliexpress | 1 | |
 |

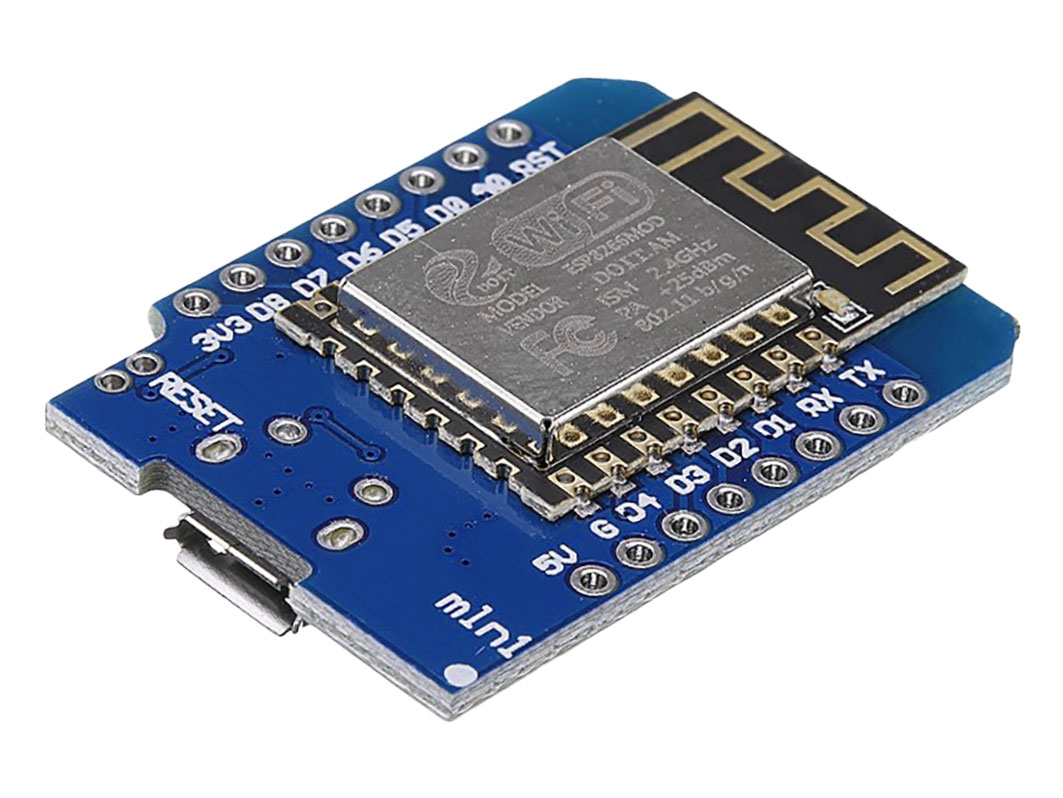

Wemos D1 mini (Esp8266) | Aliexpress | 1 | |
 |

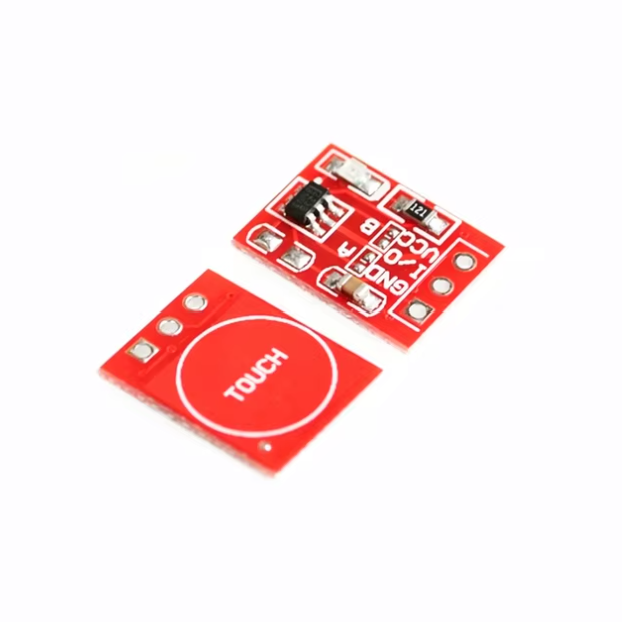

TTP223 Touch Button | - | 1 | |
 |

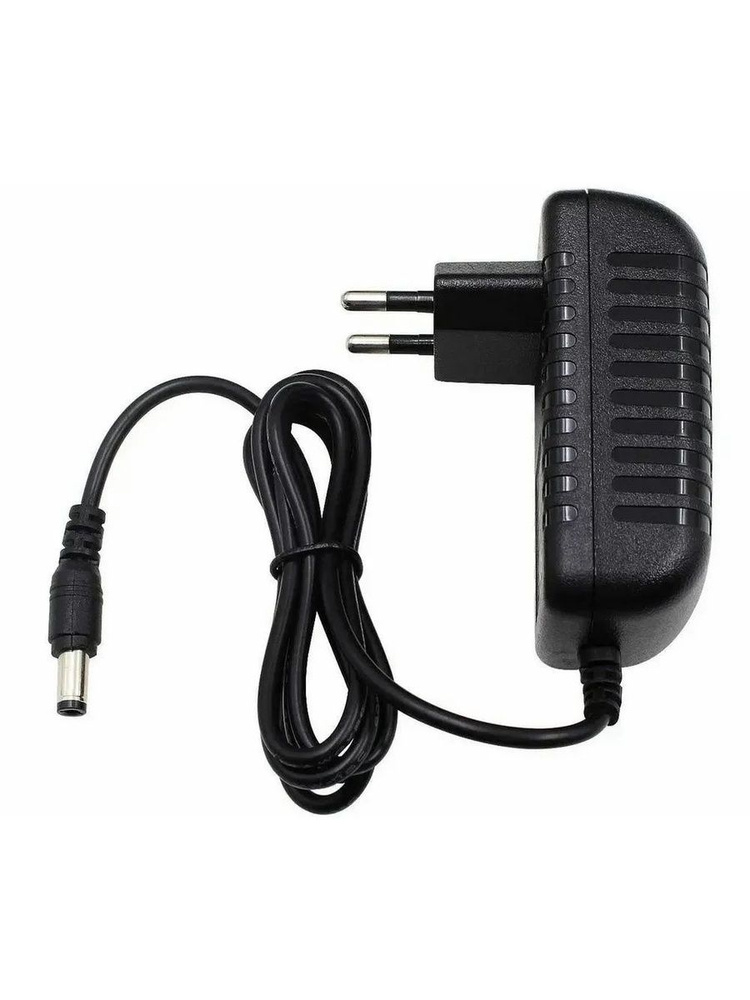

5V 3A Power Supply | - | 1 | |
 |

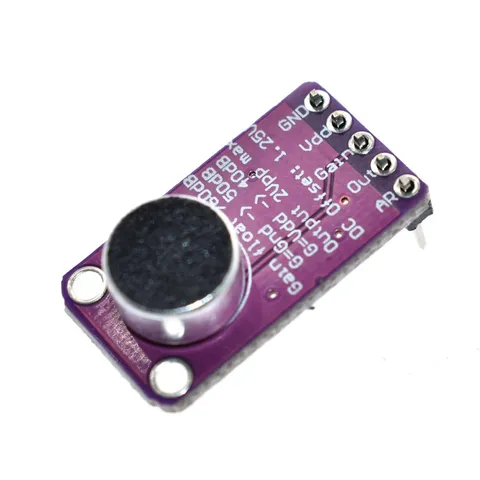

MAX9814 Microphone | - | 1 | Optional |
  |

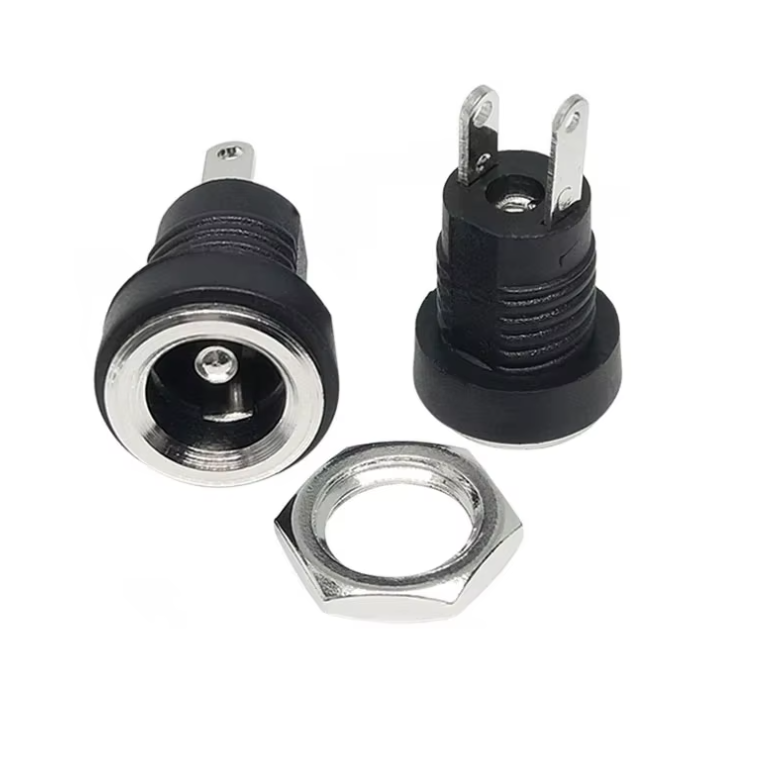

Power Connector 5.5x2.5 mm or USB Type-C |
- | 1 | |
 |

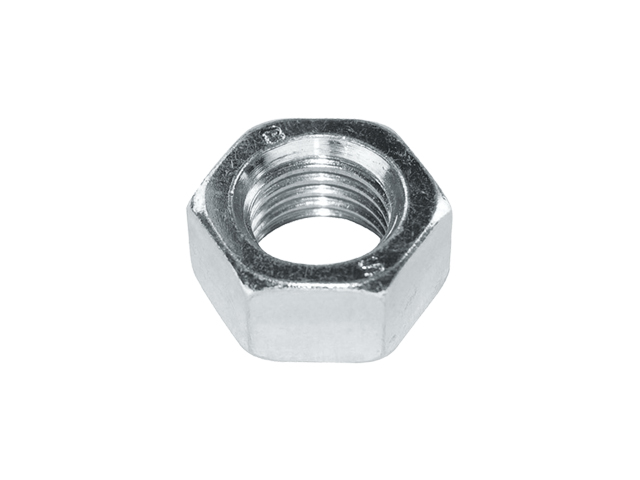

M3 Nuts | - | 3 | |
 |
M3x10 Screws | - | 3 |
Print Settings
4.cap.stl
◌ Line width: 0.4 mm
3.plafon.stl
◌ Vase mode
◌ Line width: 0.7 mm
◌ Layer height: ≤0.12 mm
Artifacts
If you encounter slicer errors, use Cura v4.8 download here

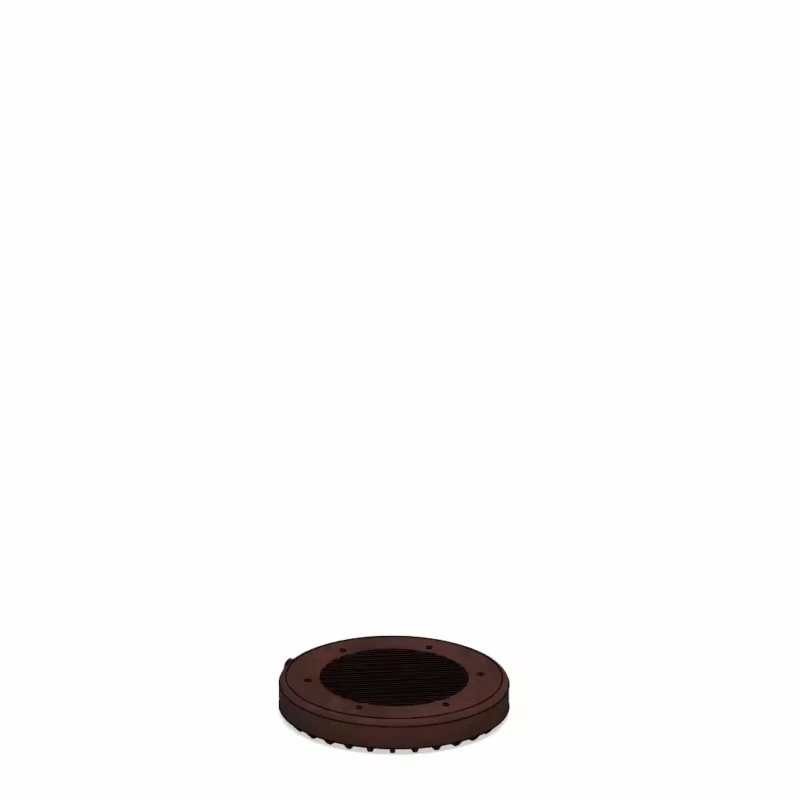

Assembly
