USB quick charge trigger case LX-QC01

Files

Printables Thingiverse Creality Cloud MakerWorld ☕︎ Treat the author to a cup of tea 🡥​

Description

A miniature one-piece case for a USB Quick Charge 2.0/3.0 trigger with fixed voltages of 5, 9, 12, or 20 V

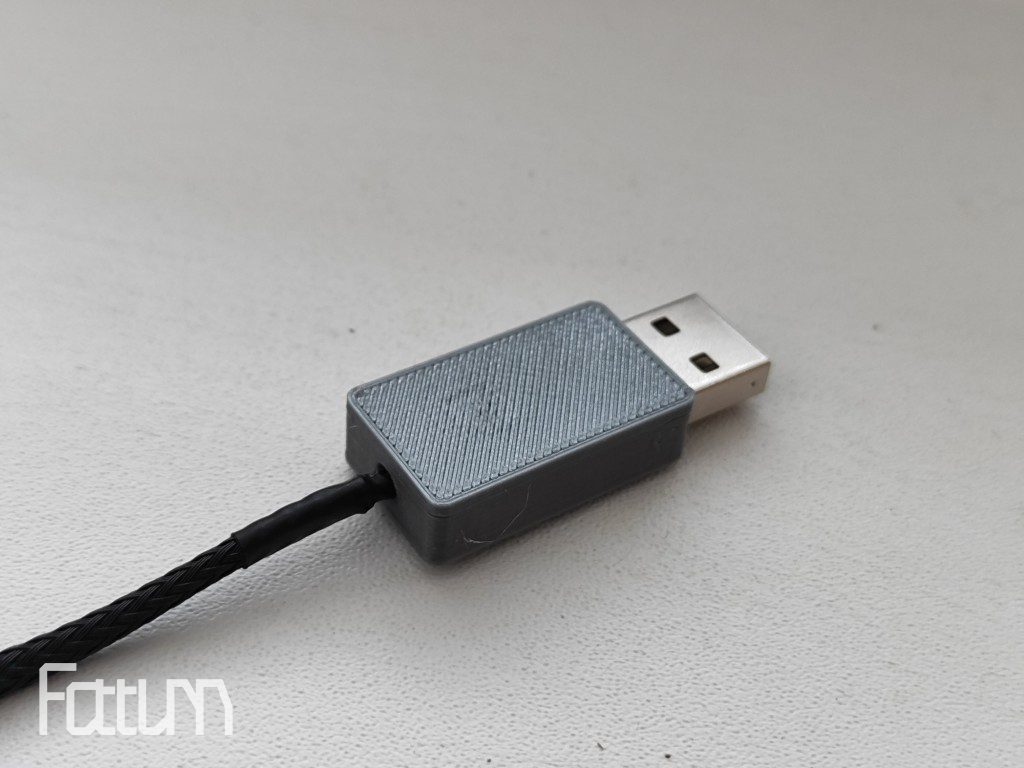

  • One-piece case (the trigger is placed inside during printing)

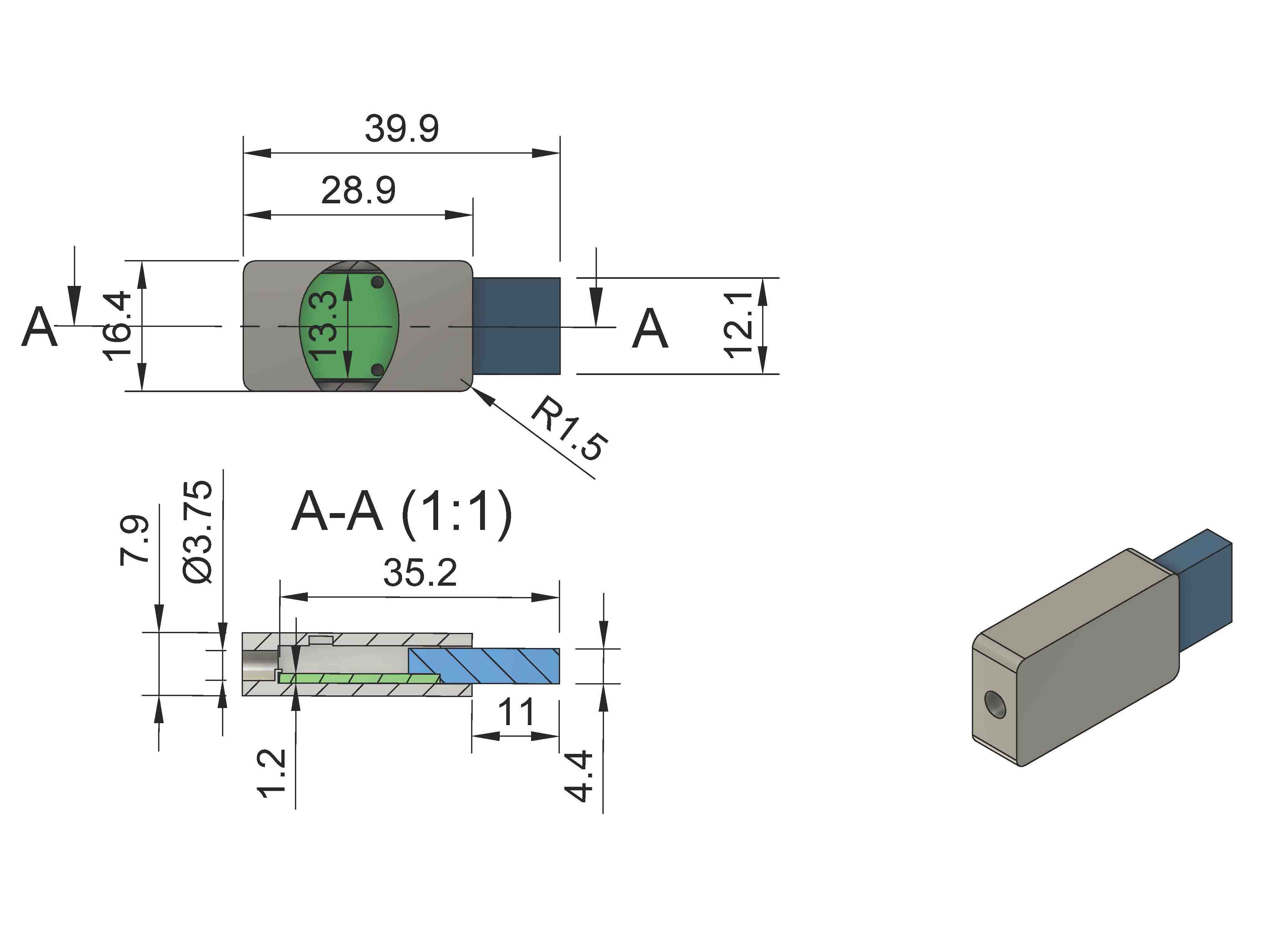

  • Case size 28.9 x 16.4 x 7.9
    Image title

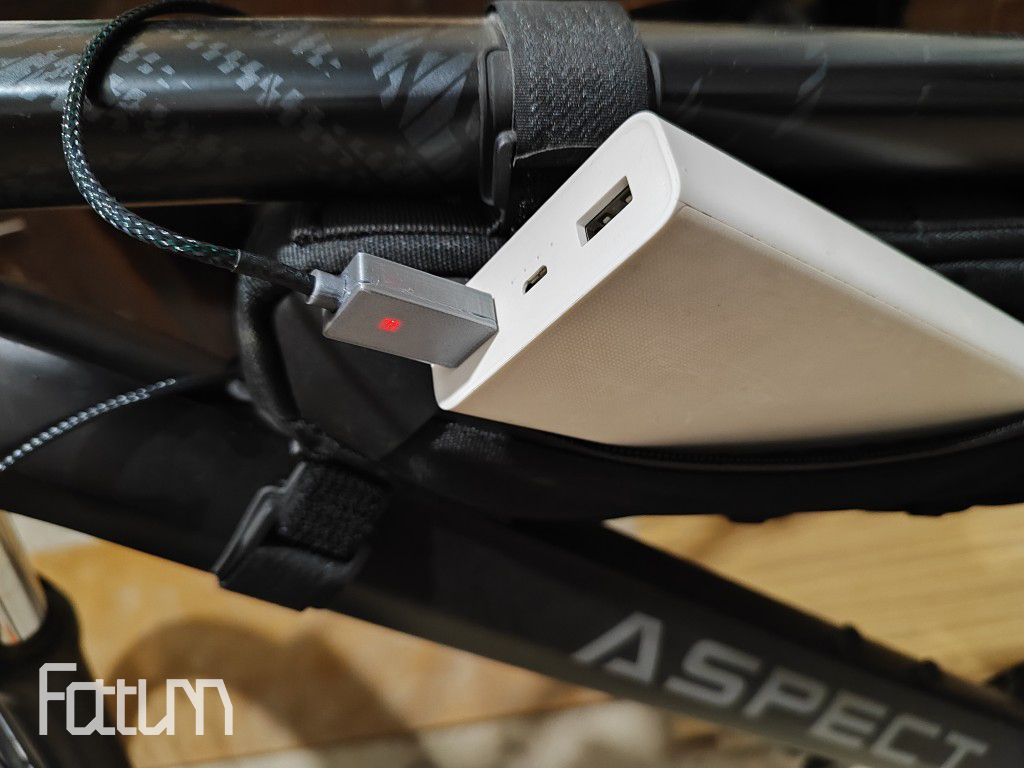

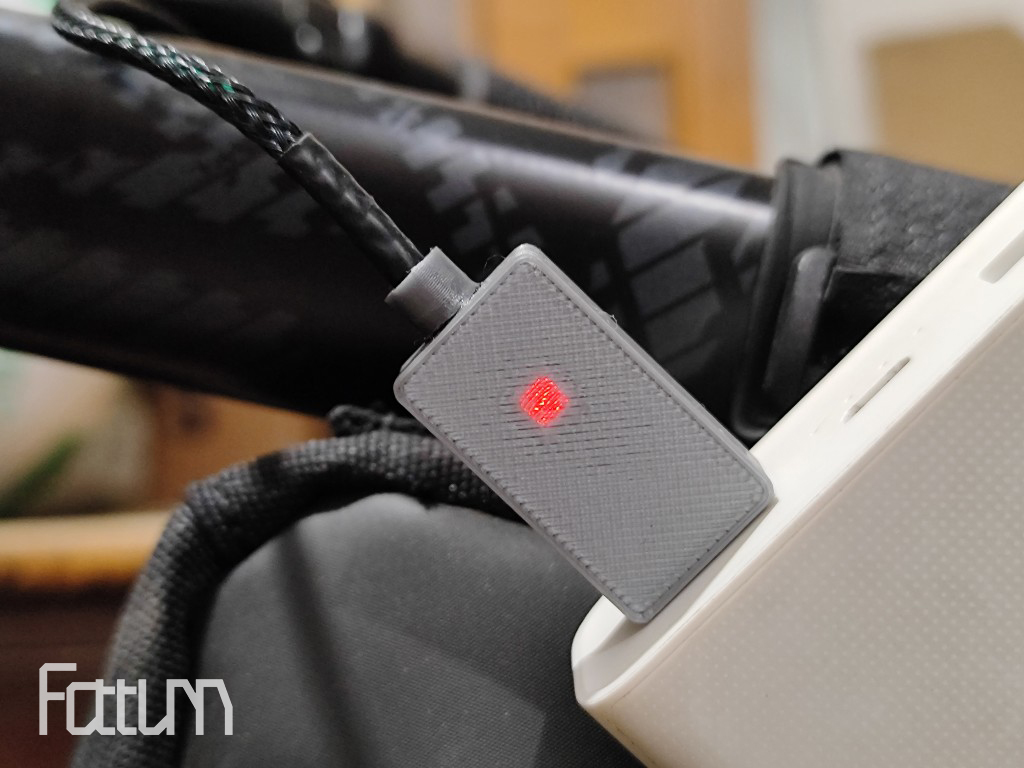

    I use this trigger with a fixed voltage of 12 V to power my bicycle headlight.

Note: the trigger only works if your power bank or charger supports fast charging mode (Quick Charge 2.0/3.0).

Assembly

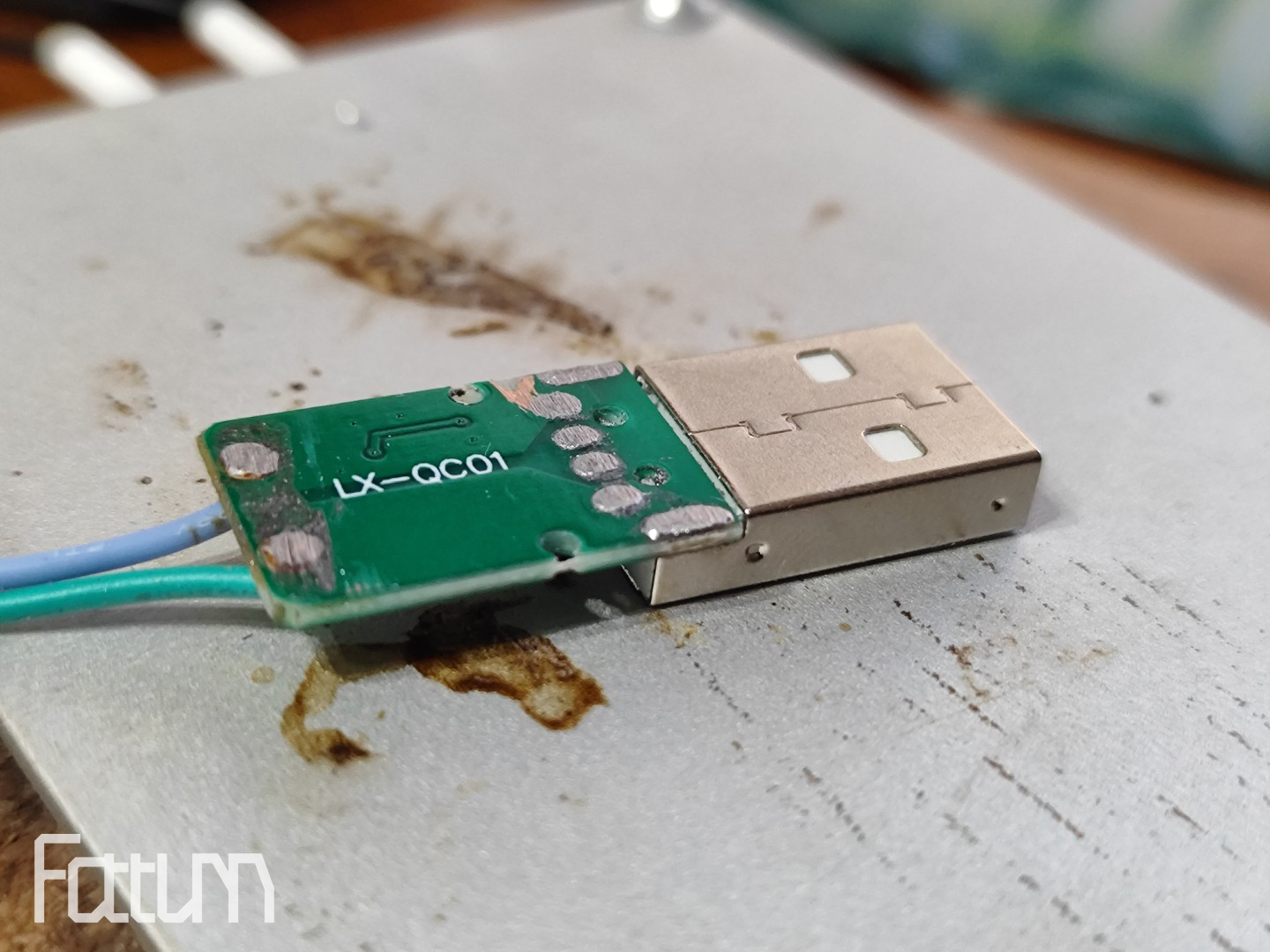

  1. Solder the wire and file down the protruding solder with a needle file
    Image title
  2. Start printing

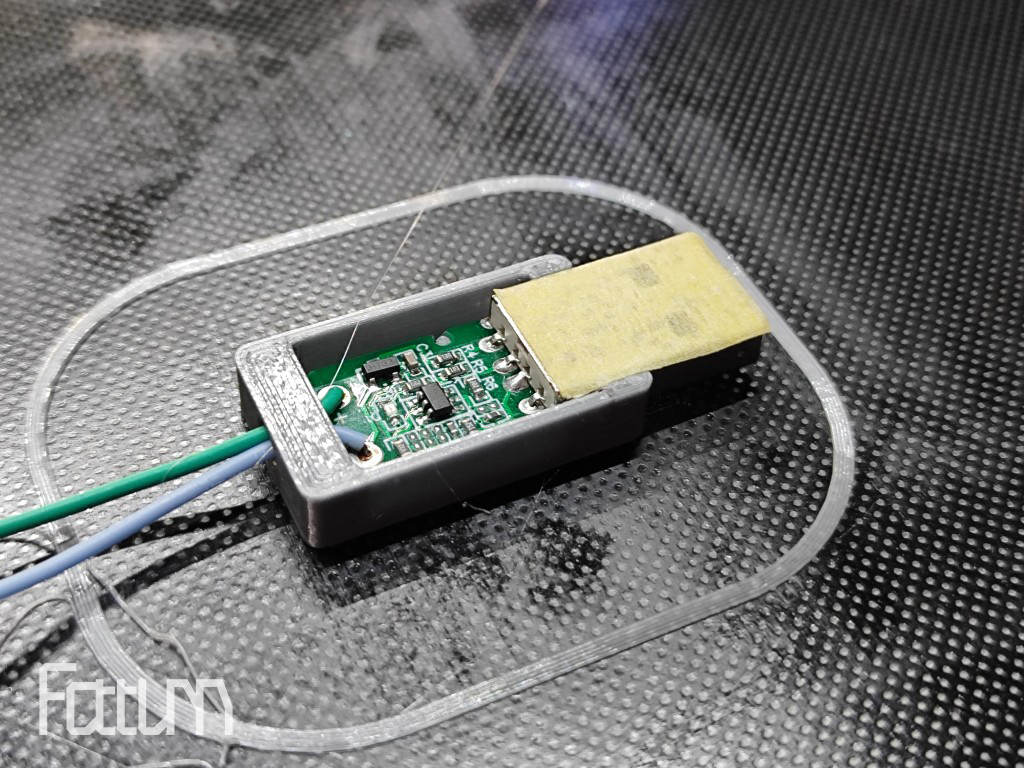

  3. Apply masking tape to the connector and while the print is paused, install it as shown in the photo.

    Image title

  4. Make sure the printer nozzle will not catch the connector and resume printing

    Image title
